PlantProof
Run it. Prove it.
SCADA, historian, alarms, OEE and maintenance in one install, for Allen-Bradley, Siemens, Mitsubishi, CLICK, Modbus and OPC UA. It runs on your own network, with licence keys that never need the internet.
Every module during the evaluation, with any number of PLCs. No credit card.
See PlantProof in 2:14
From the sensor to the signature

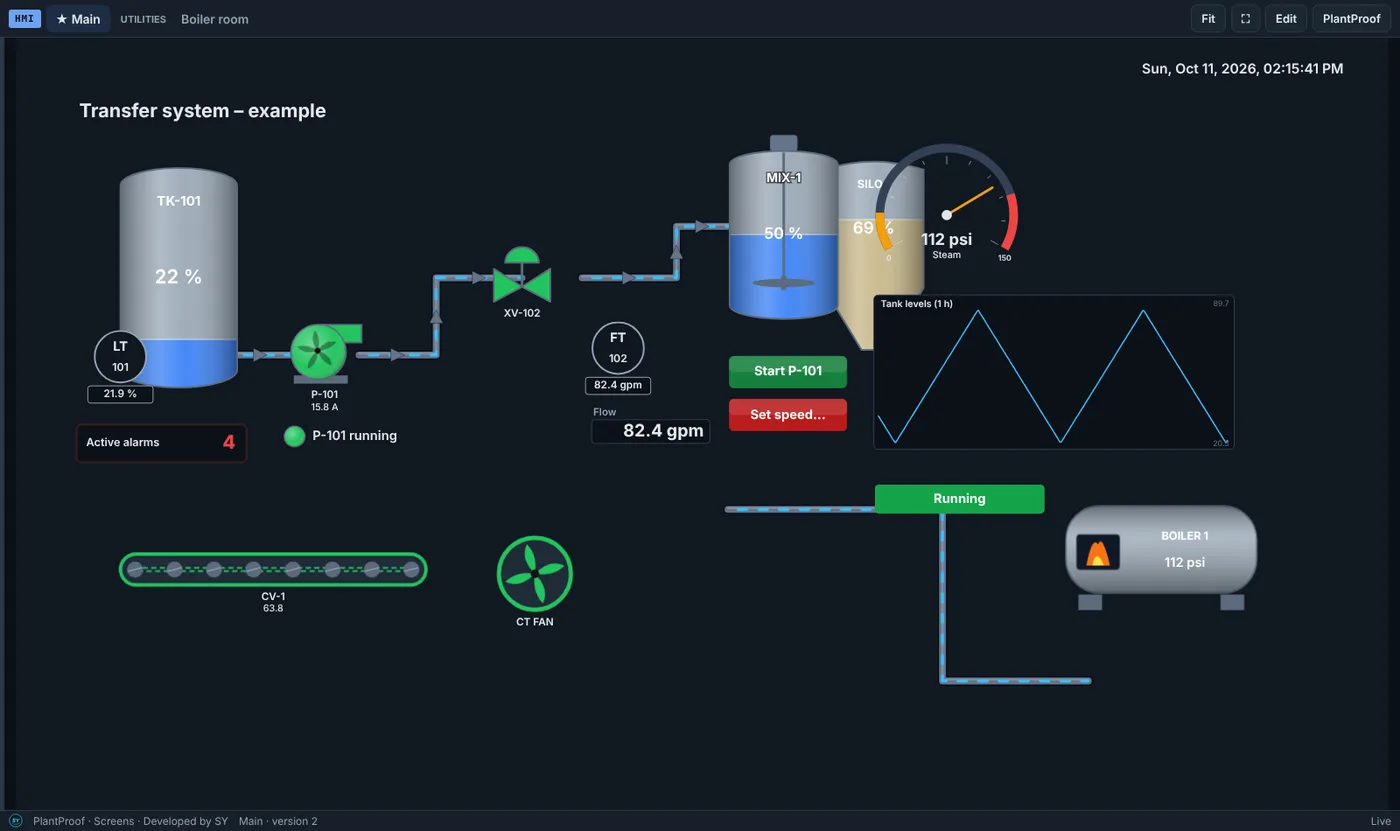

Live screens your operators will actually use

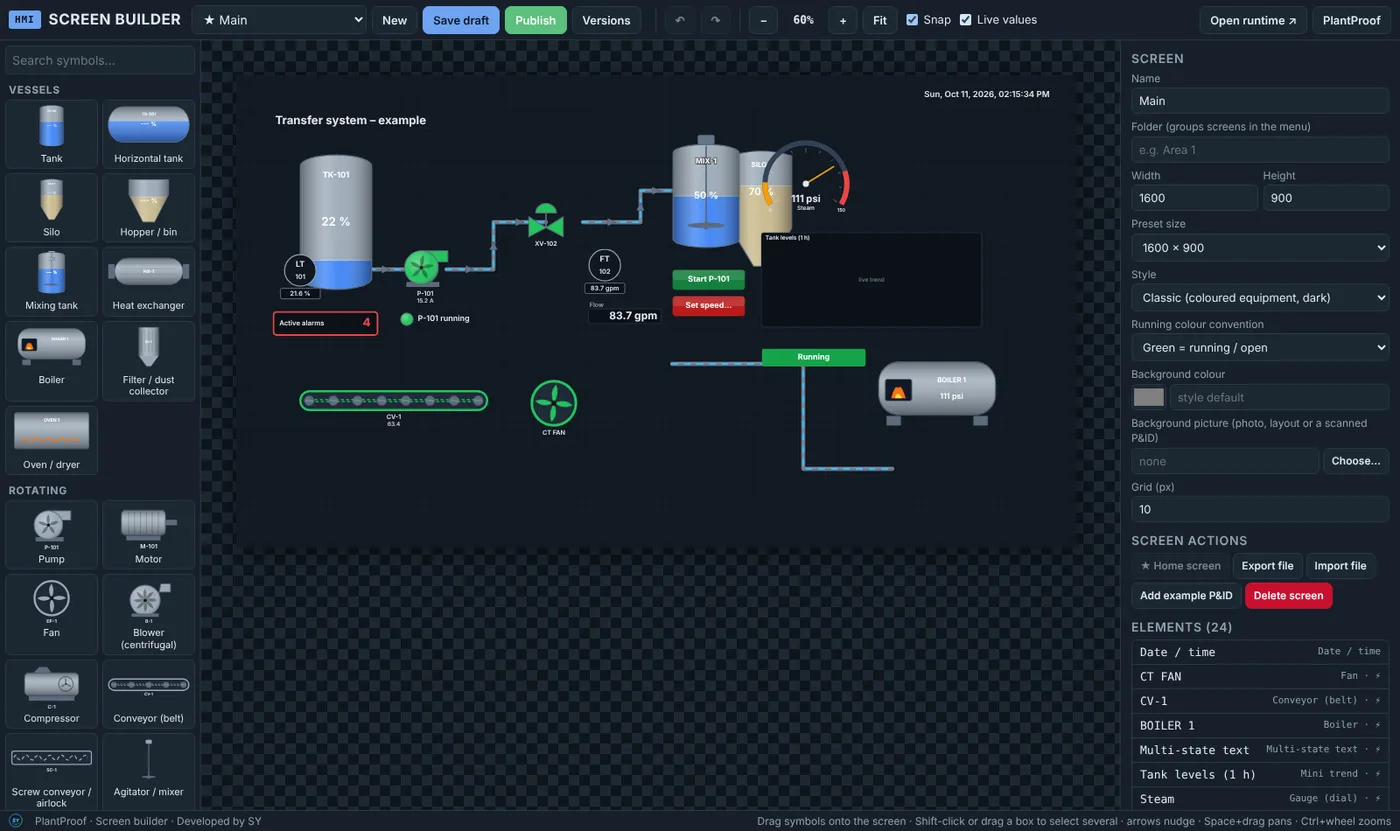

Build P&ID and equipment screens with animated tanks, pumps, valves and gauges, then run them in any browser on the plant network, including phones.
- Drag-and-drop screen builder with a symbol library
- Live values, alarms and write buttons on every screen
- Works on PCs, tablets and phones, nothing to install
Every PLC brand, at once
Allen-Bradley CompactLogix and ControlLogix, Siemens S7, Mitsubishi, AutomationDirect CLICK, any Modbus device and any OPC UA server, each polled on its own thread so one bad link never stalls the rest.
- No RSLinx, OPC server or extra drivers needed
- Built-in OPC UA server publishes every PLC to other systems
- Writes are off until an administrator allows them, and every write is logged

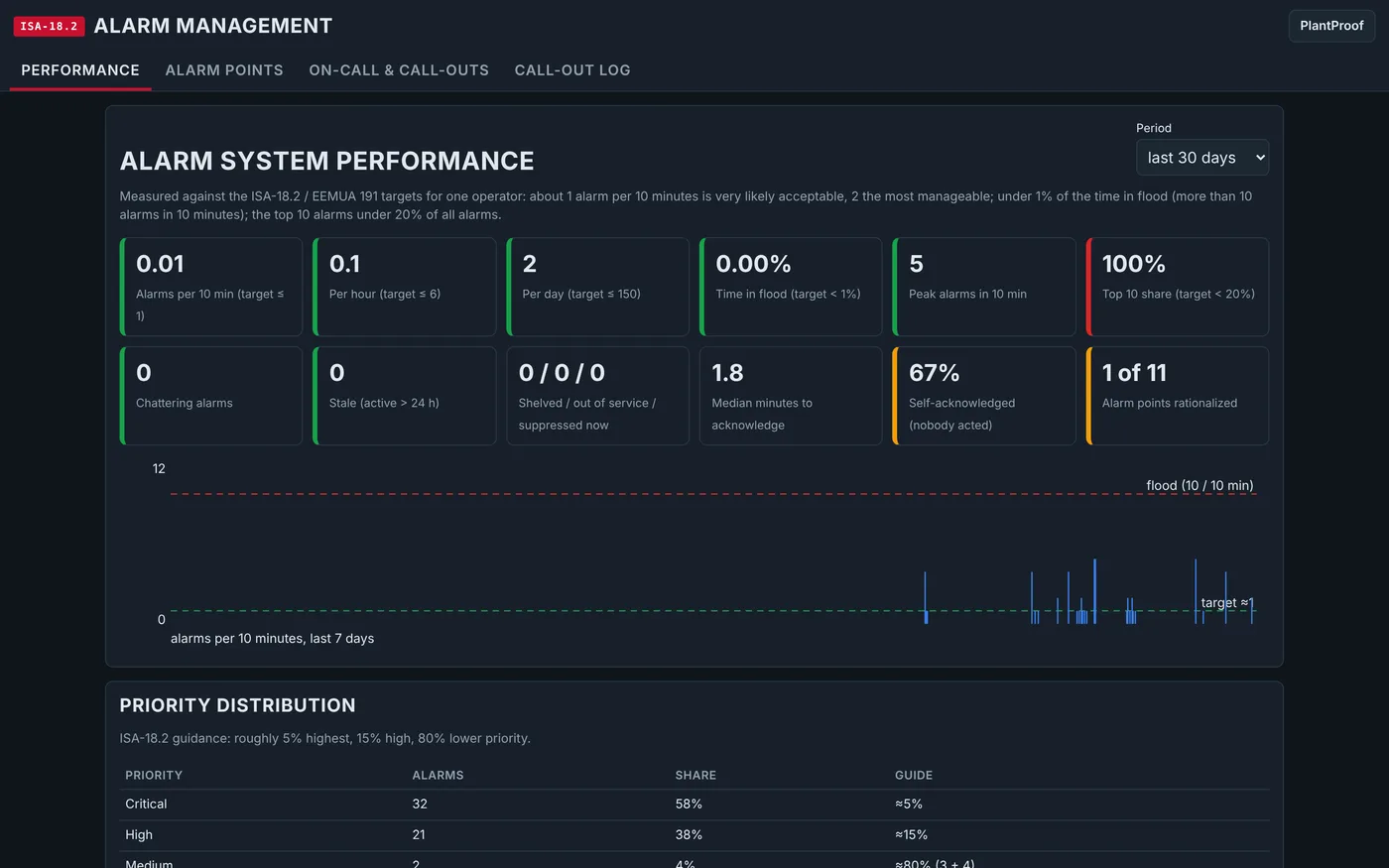

Alarm management to ISA-18.2
Every PLC gets a communication-lost alarm automatically. Add high, low, on, off and bad-quality alarms with priorities, spoken messages, escalation and an alarm-performance dashboard.
- Voice, pop-ups, siren and e-mail escalation
- Alarm rates, floods, chattering and stale alarms tracked

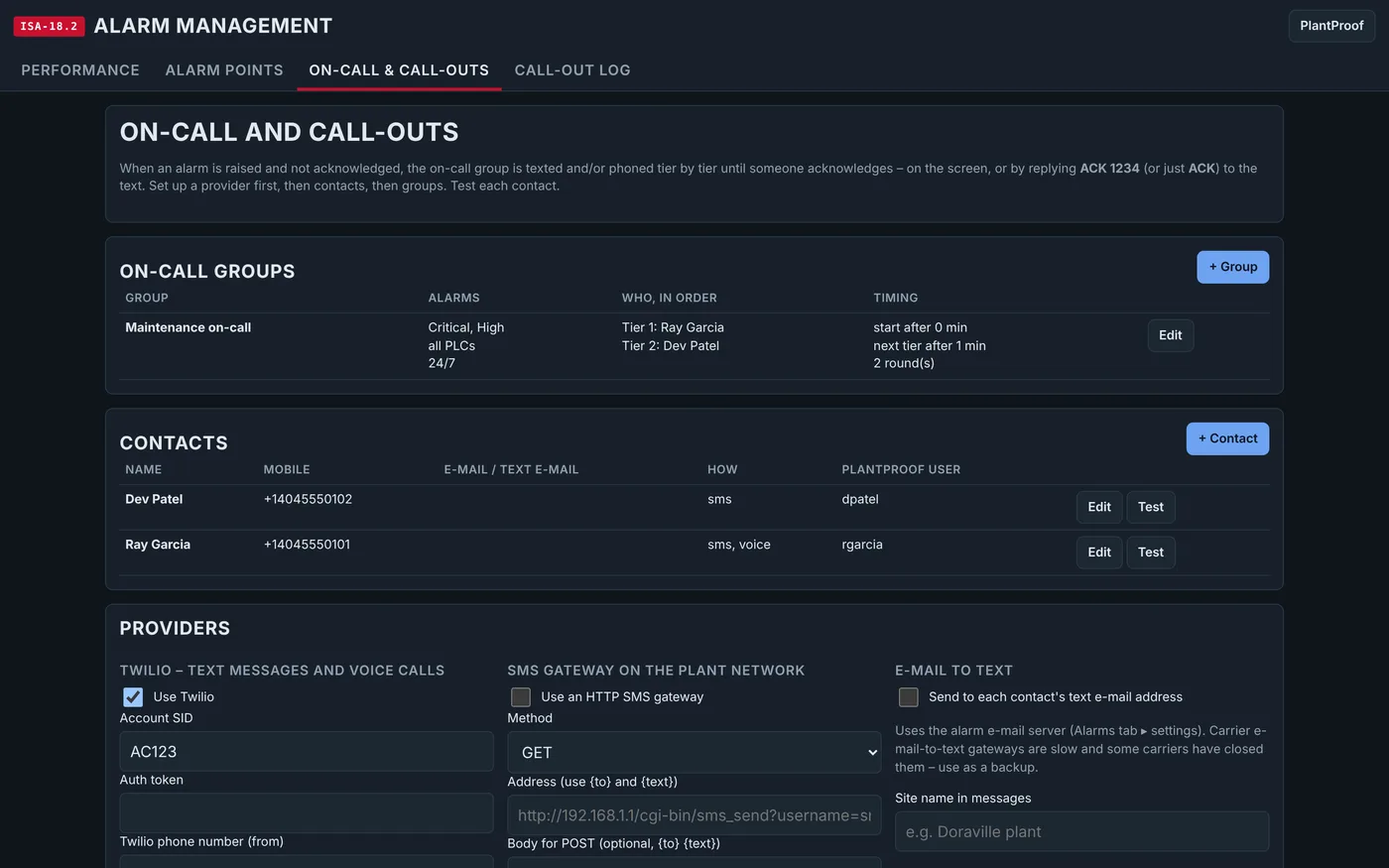

- On-call groups with text call-outs

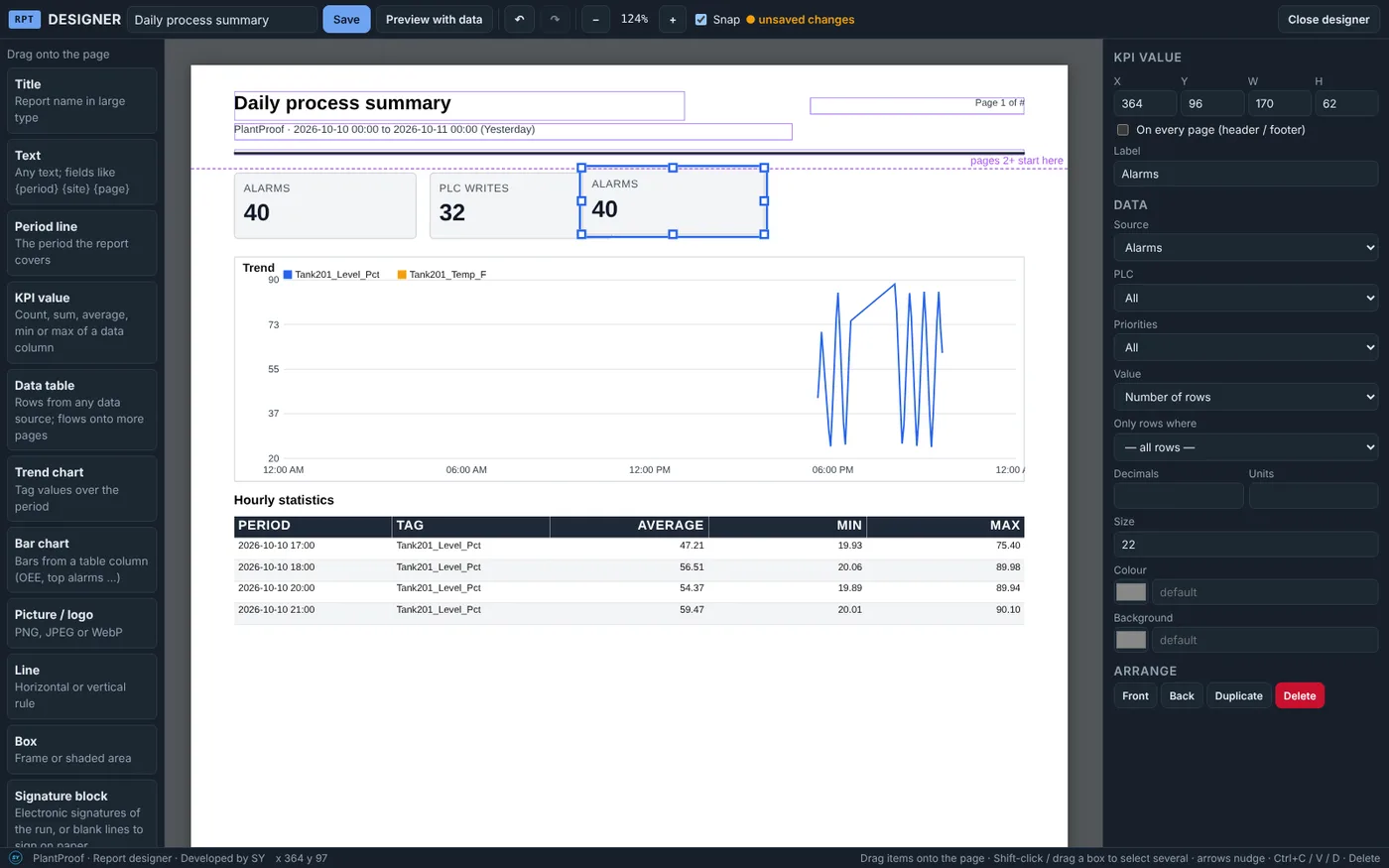

Historian, trends and reports
Archive any tag, trend up to 20 tags over a year, search history by shift and quality, and design printable reports by drag and drop.
- Time-weighted averages by hour, shift, day or month
- OEE per line with downtime Pareto and stop reasons
- Print-ready reports and CSV export

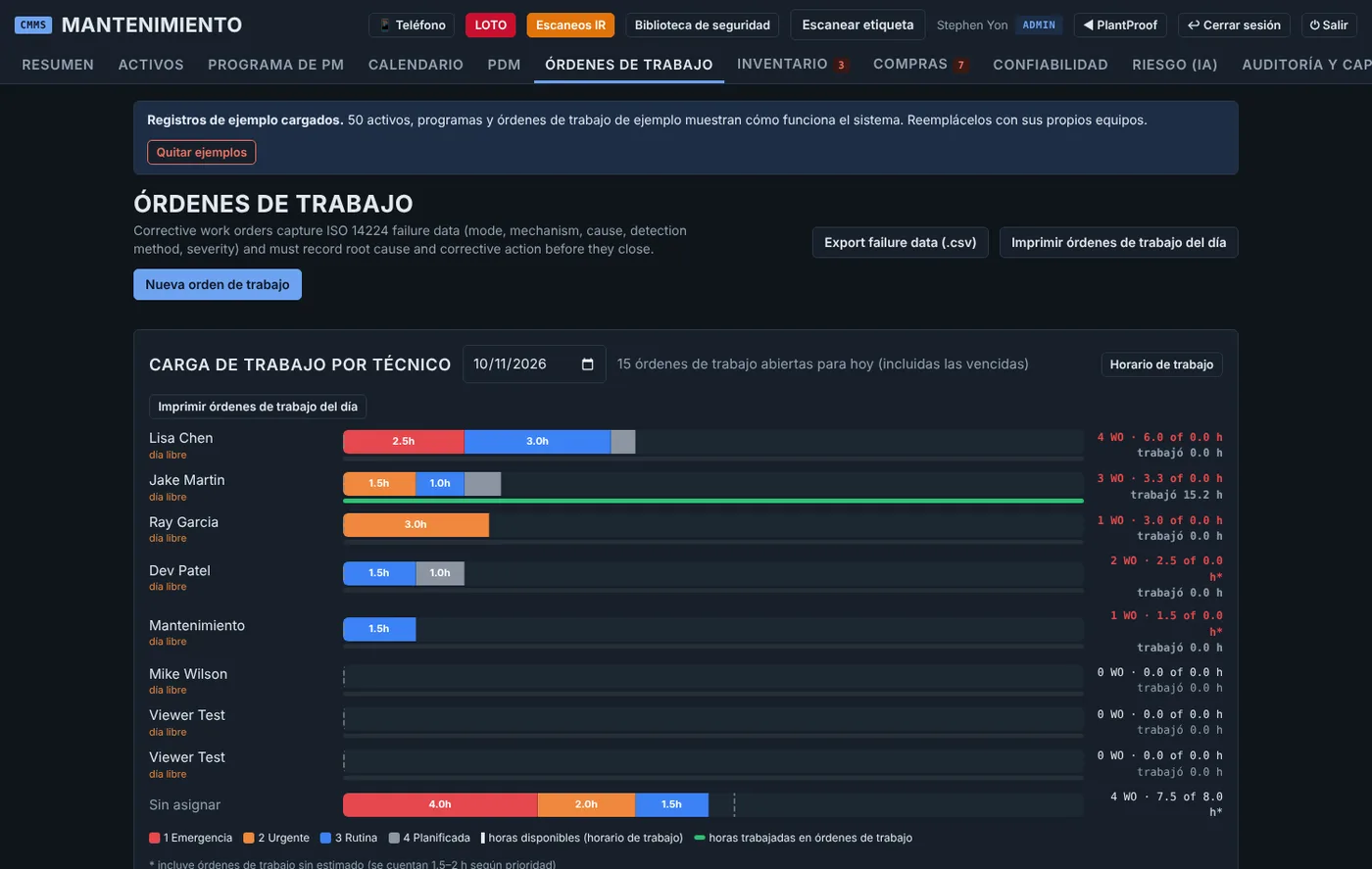

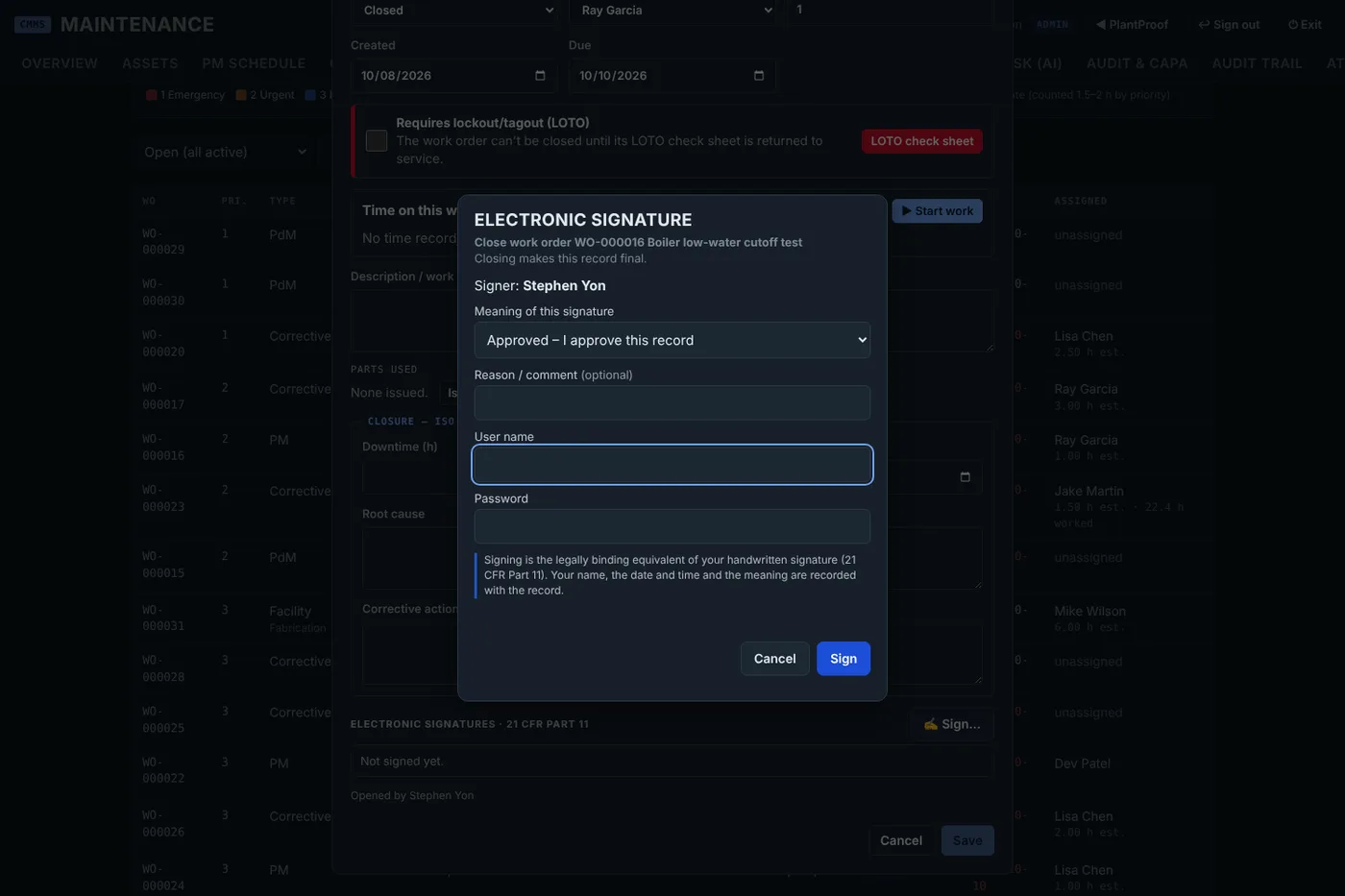

Maintenance and compliance built in
A full maintenance module (work orders, PM and PdM, spare parts, LOTO, thermal inspections), with FDA 21 CFR Part 11 electronic signatures and audit trails for regulated plants.
- Work orders and PM schedules tied to live equipment data
- LOTO check sheets and procedures, phone-first
- Signature register and audit-trail integrity check
Built for uptime

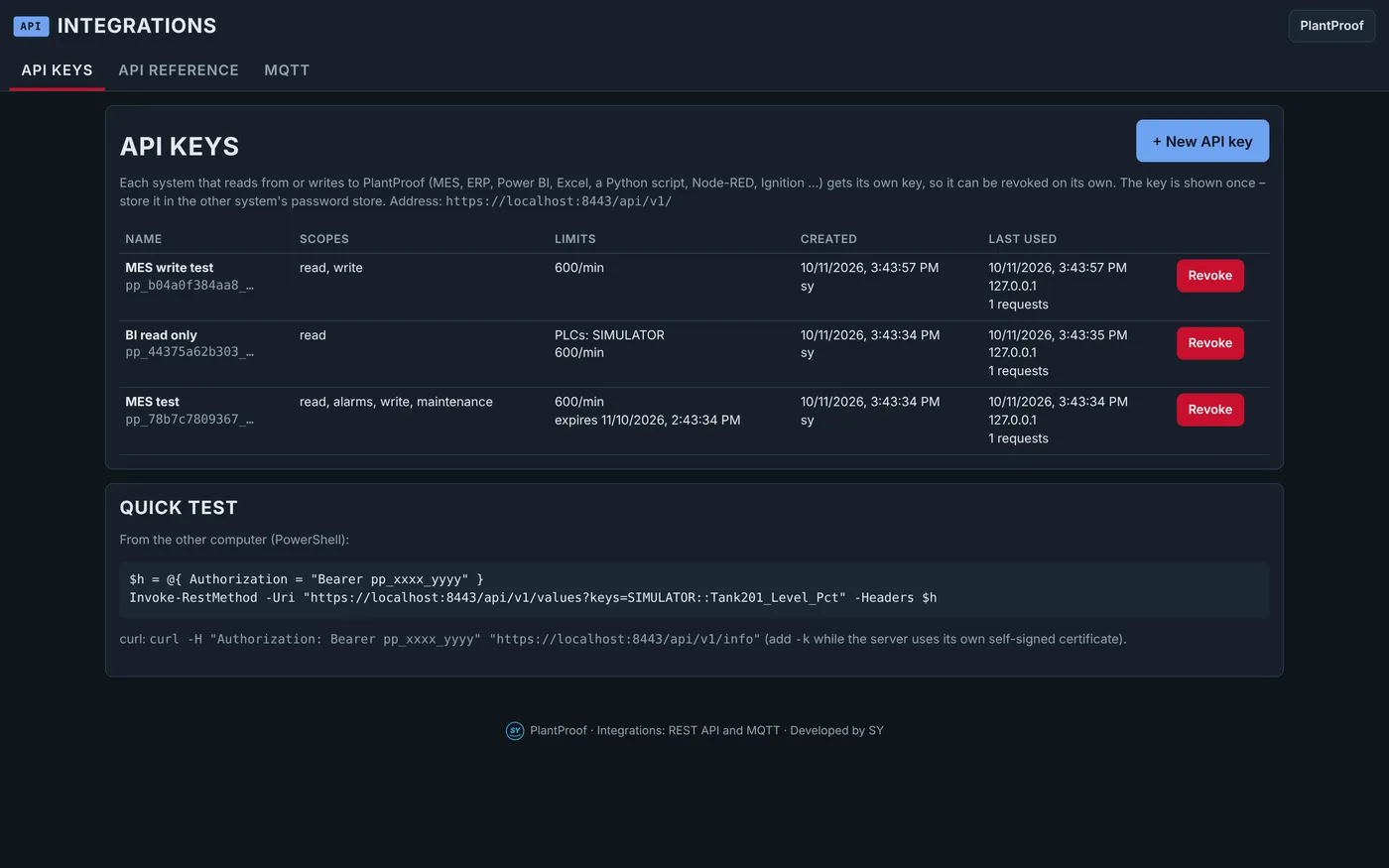

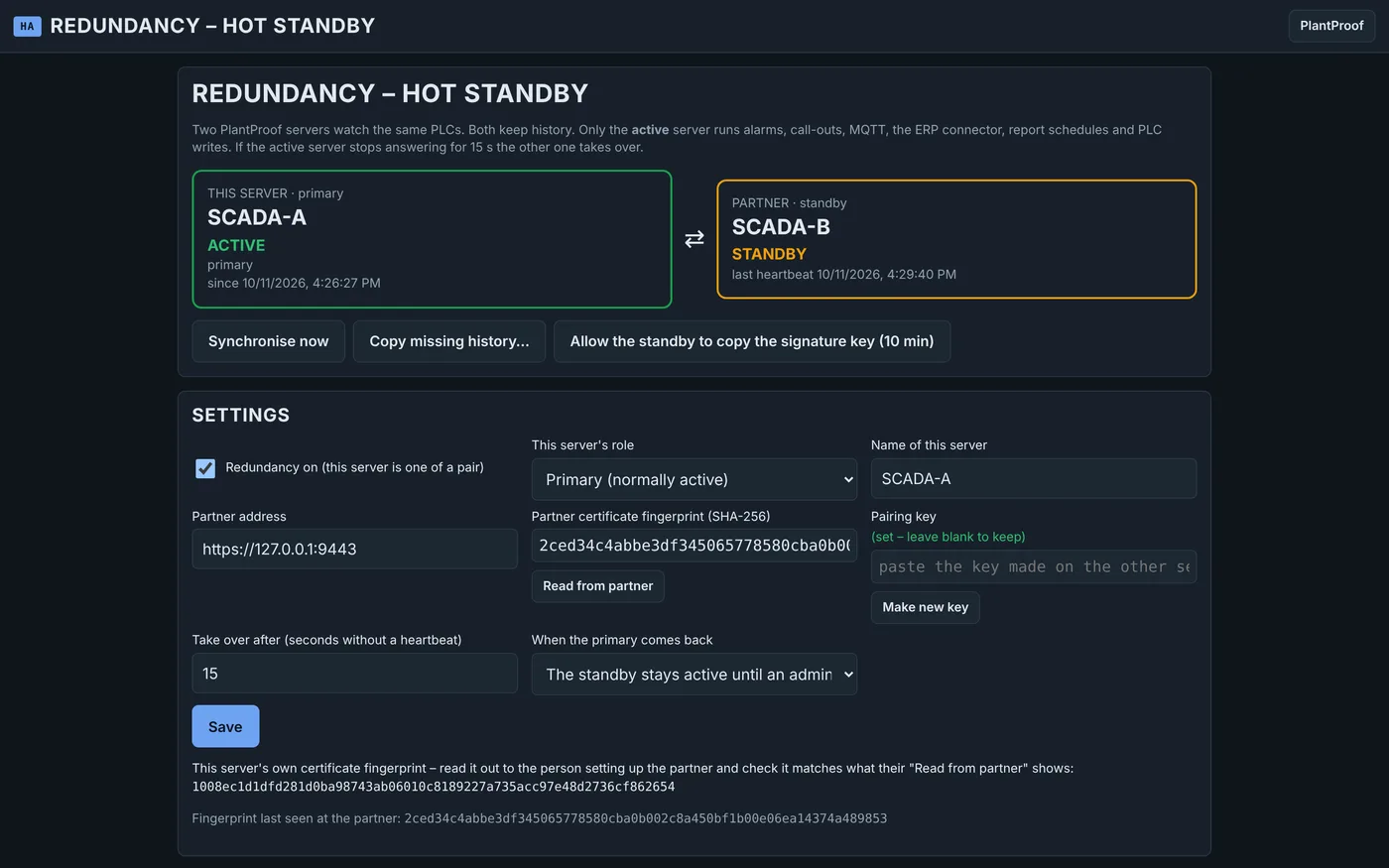

Run two PlantProof servers as a hot-standby pair, publish data to other systems over a REST API or MQTT, and connect to Business Central ERP.
- Hot standby with automatic take-over
- REST API with keys and scopes, plus MQTT

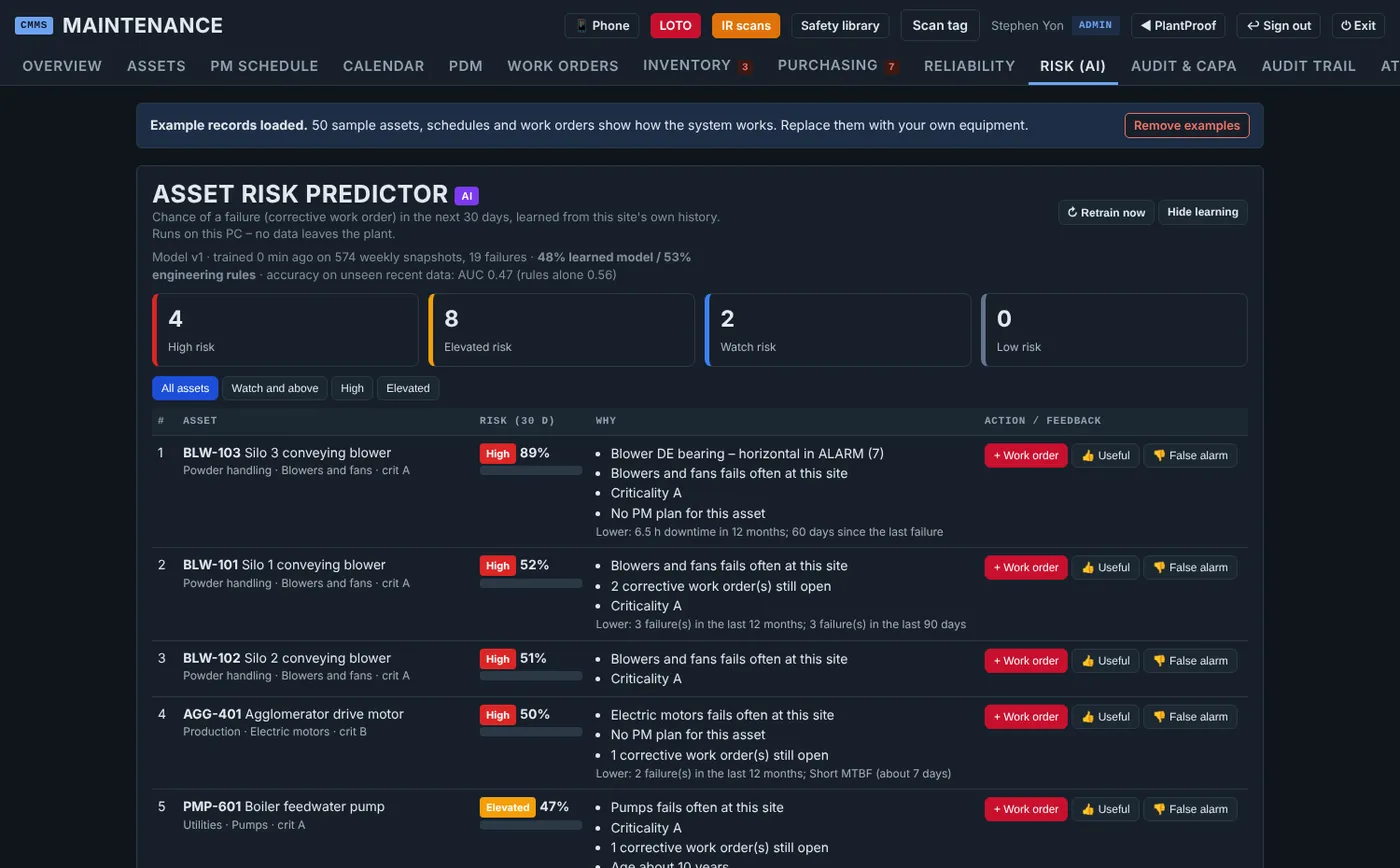

- AI asset-risk predictor for maintenance planning
One-time purchase. Every module included.
Launch prices in US dollars, including any sales tax or VAT. The licence key appears on the thank-you page right after payment.
Evaluation
- Every module for 30 days
- Any number of PLCs
- Then keeps running on up to 3 PLCs
Pilot
- Up to 3 PLCs at once
- Every module included
- 12 months of support and updates
- Renewal $199/year, optional
Site
- Any number of PLCs at one site
- Every module included
- 12 months of support and updates
- Renewal $699/year, optional
14-day refund window; see the refund policy. Need several sites or a quote for purchasing? Send an inquiry.
A closer look
What you need
| Server | Windows 10, 11 or Server 2016 or later, 64-bit. Python is included and installed privately |
| Clients | Any modern browser on the plant network: PC, tablet or phone |
| PLCs | Allen-Bradley Logix, Siemens S7, Mitsubishi MC, CLICK, Modbus TCP, OPC UA, OPC DA |
| Internet | Not needed to run or license. Setup downloads its Python packages, or uses the included offline kit on isolated networks |
Frequently asked
Does the SCADA PC need the internet?
Not to run. PlantProof runs on your own network, and the licence key is checked on the PC itself. For a PC that never reaches the internet, use the offline kit so setup needs no downloads. Buying, downloading and entering the key can all happen from any PC, and the key can be carried to an isolated network on a USB stick.
What happens after the 30-day evaluation?
Without a key, PlantProof keeps running and collecting data on up to 3 PLCs. Nothing is deleted. Enter a Pilot or Site key any time to lift the limit.
What's the difference between Pilot and Site?
Both include every module. Pilot polls up to 3 PLCs at the same time; Site polls any number of PLCs at one site. The built-in simulator never counts.
Is it a subscription?
No. Both editions are a one-time purchase that keeps running forever. The first 12 months of support and updates are included; after that, an optional yearly renewal keeps you on the newest version.
Which PLCs and systems does it support?
Allen-Bradley CompactLogix and ControlLogix (EtherNet/IP), Siemens S7-300/400/1200/1500, Mitsubishi iQ-R, iQ-F, Q and L (MC protocol), AutomationDirect CLICK and any Modbus TCP device, any OPC UA server, and legacy OPC DA servers on Windows.
How do I renew support and updates?
Use the renewal button for your edition and enter your licence ID (it starts with PP-, and PlantProof shows it under user menu > Licence). The thank-you page then shows your renewed key.
